PMD-50 Seal-less Magnetic Drive Chemical Pump | Taha Pumps

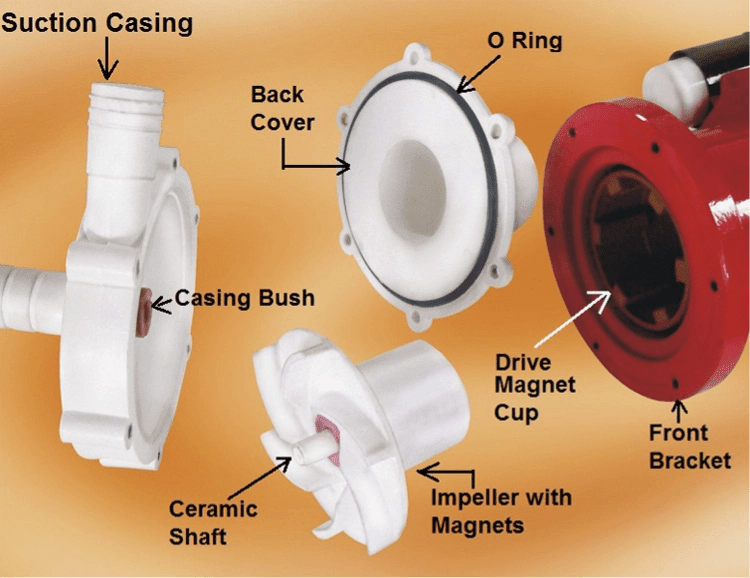

The PMD-50 Seal-less Magnetic Drive Chemical Pump by Taha Pumps is a compact and efficient chemical transfer pump designed for the safe handling of corrosive and hazardous liquids. Its seal-less magnetic drive construction eliminates mechanical seals, significantly reducing the risk of leakage and making it ideal for applications where fluid containment is critical.

With a maximum flow rate of 50 LPM, maximum head of 5.5 meters, and a 0.25 HP single-phase motor, the PMD-50 is well suited for laboratories, chemical dosing systems, plating plants, water treatment systems, pharmaceutical applications, and industrial chemical circulation. The 20 × 20 mm inlet and outlet connections allow for easy installation in compact piping systems.

Manufactured using corrosion-resistant materials, the pump offers quiet operation, low maintenance, and reliable long-term performance. Its leak-proof magnetic coupling design enhances safety while extending pump life, making it an excellent choice for transferring acids, alkalis, solvents, and other compatible chemicals.

Applications:

• Chemical transfer and circulation
• Acid and alkali pumping
• Chemical dosing systems
• Electroplating and surface treatment plants
• Water treatment and RO systems
• Laboratory and pharmaceutical industries
• Industrial process fluid handling
